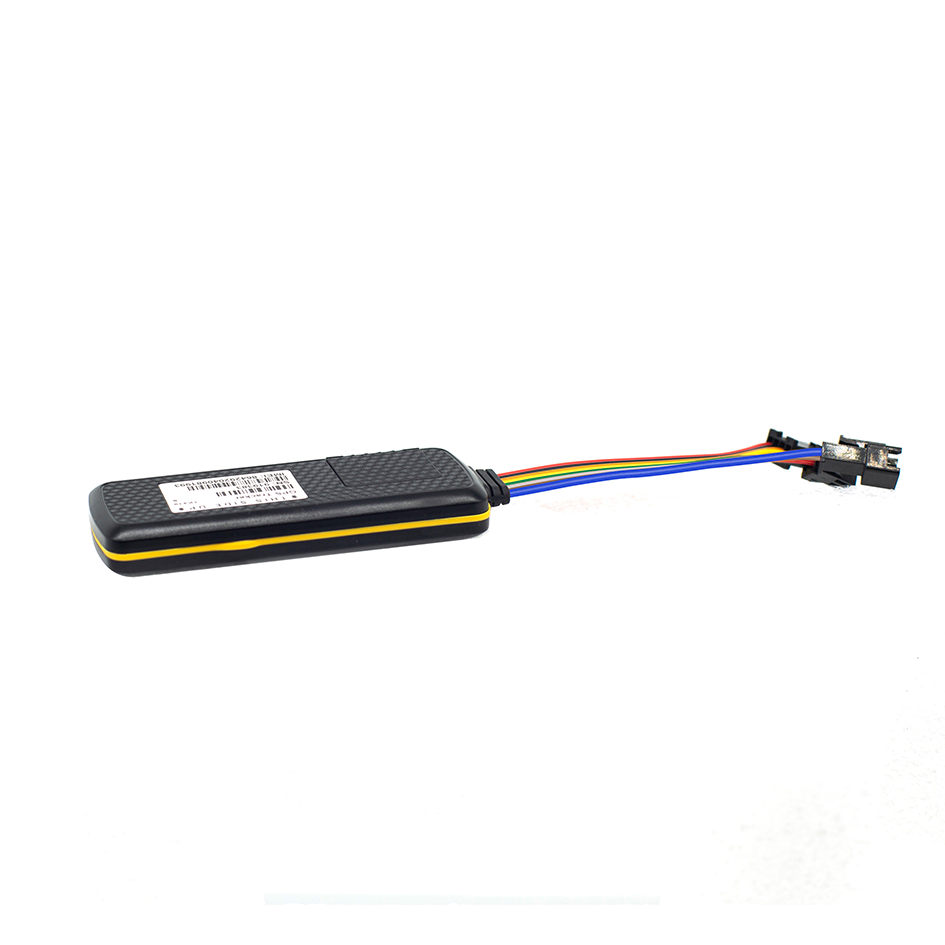

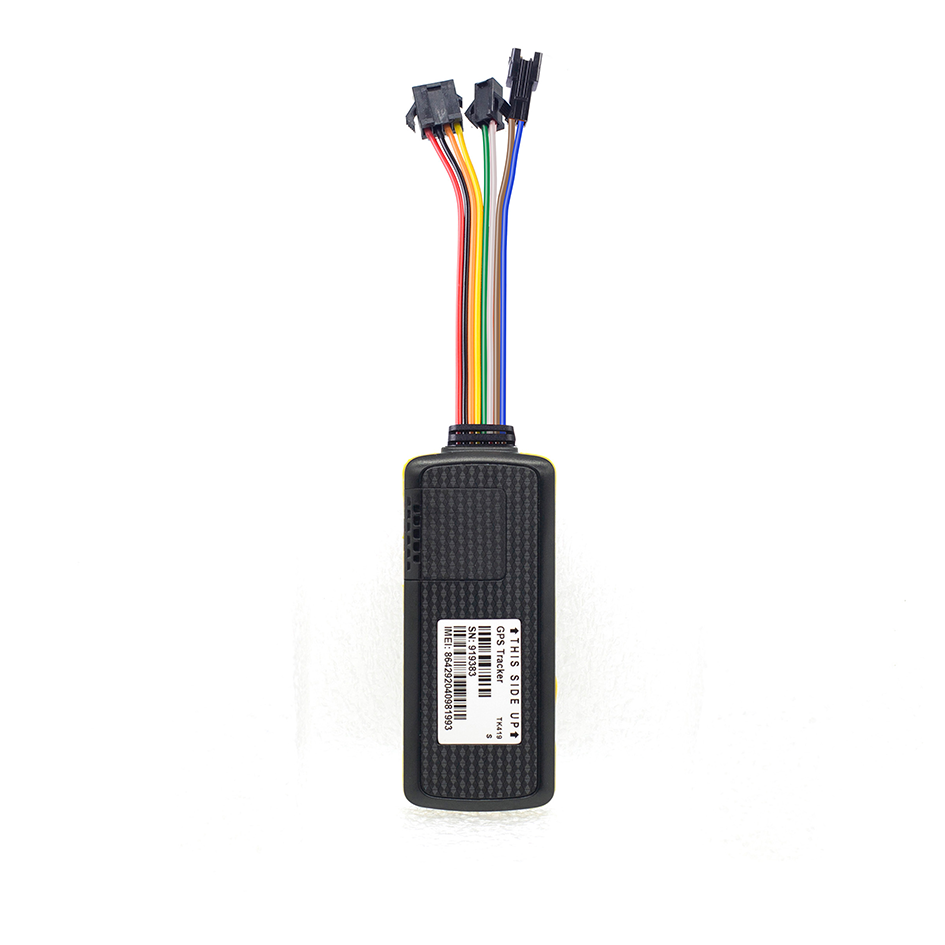

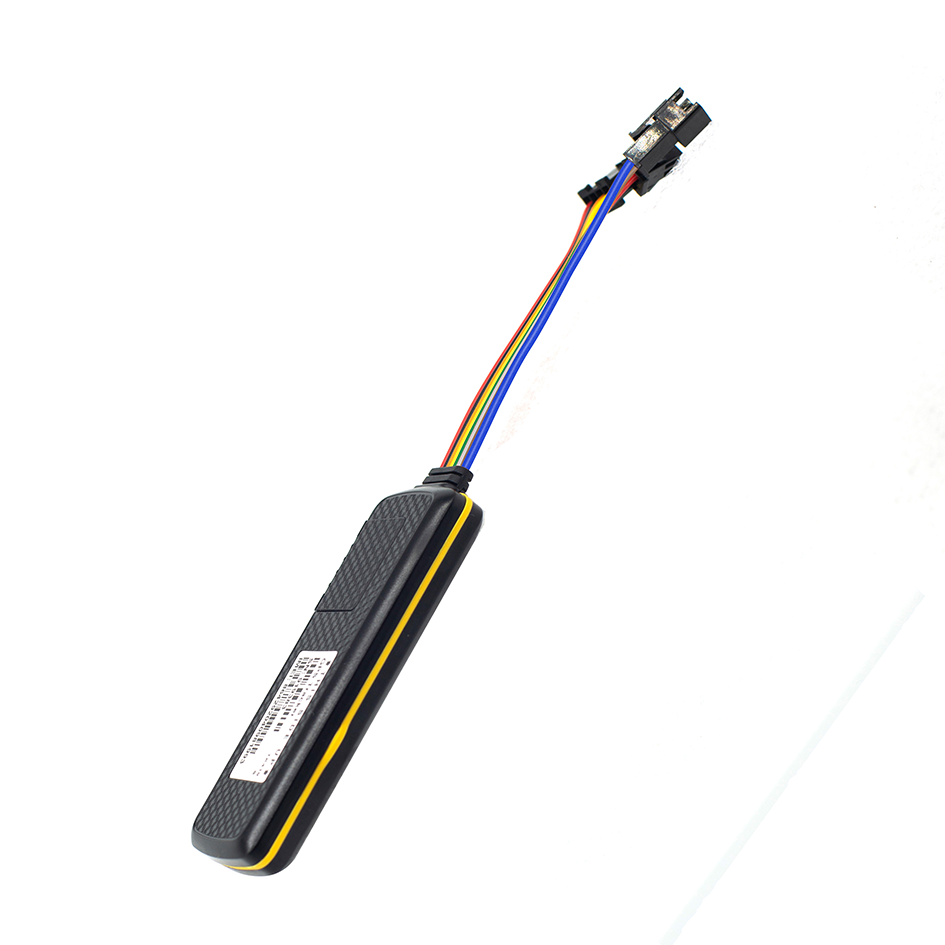

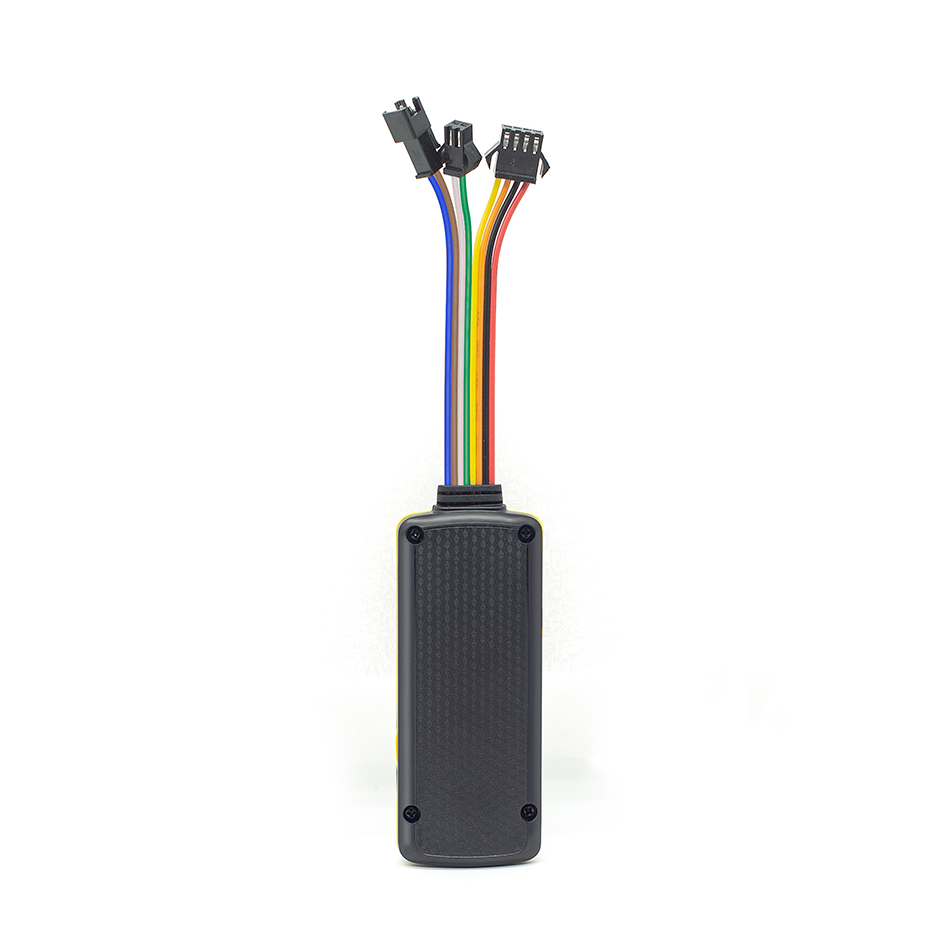

4G car GPS tracker TK419 with iButton for driver ID identify tracking

LTE Band:	FDD(B1/B2/B3/B4/B5/B7/B8 /B28); TDD(B40)
WCDMA Band:	B1/B2/B5/B8
Dimensions (mm):	89(L)X 37(W) X 12(H)
Battery Capacity:	160mAh
Voltage:	12/ 24/ 36/ 48/ 60/ 72 VDC
Standby Current:	Power off(20uA);Sleep(3mA);Idel(22mA)

The new tracker TK419 is designed with the latest 4G LTE technology,with iButton function.

4G car GPS tracker is widely used in fleet tracking and protection of vehicle safety. It can also effectively stop theft of vehicles,which are excellent anti-theft device,and even effective in tracking stolen vehicles.

Support network:2G/3G/4G

Pressing the GPS Tracker’s iButton reader to identify driver ID ,that the driver can turn on the vehicle and keep the car safety.

Inquiry Us + Sample Order

Description Features Specifications Accessories

Why car GPS tracker with iButton important

Car GPS tracker with iButton is an essential part of vehicle fleet tracking management, which is connected to the one of the tracker’s inputs and read drivere ID to turn on the vehicle.

We can list many benefits that GPS tracker with iButton function:

1.It is great option to ensure you get the maximum monitoring benefits from your GPS fleet management system.

2.Driver authorization – gives ability to use vehicle only for specific iButton owners and identify which driver is on the road.

3.Immobilizer – without iButton authorization you can not run engine starter and and use vehicle.

4.Auto Geofencing – gives ability to know when car leaves customized areas without iButton authorization.

The best tracking devices with iButton from Eelink

The new model TK419 4G LTE tracker manufactured by Eelink is a GPS/Glonass/Beidou/Galileo device with iButton function.

It fully supports 4G LTE FDD, 3G WCDMA, 2G GSM mobile networks.which supports remotely ignition and fuel cut off can be used to monitor motorbikes, cars,boats, expensive machinery, personal asset and commercial vehicles.

No matter which country you are in, tk419 can be accurately located, you can manage the driver ID identify for your fleet.

Application

-Fleet management

-vehicle tracking in real-time

-Truck/trailer tracking

-Car Rental

-Support GSM/ WCDMA/ LTE FDD

-Support GPS/ Beidou/ Glonass/ Galileo,A-GNSS/ LBS for aiding.

-Data Uploaded by GPRS/WCDMA/LTE FDD regularly, check by Web/APP/SMS.

-Super Wide Input Voltage：9-72V DC

-ACC status detection

-Support SOS, External battery, iButton, Bluetooth host(Hardware customization, Choose one of 5)

-Support Serial port or GPIO port

-Built-in battery, power disconnect alarm &low battery alarm

-Built-in motion sensor, support shock alarm include vibration, collision and falling.

-GEO-fence alarm, speed & shift alarm.

-Relay to cut engine, auto cut engine when over speed and recover when normal speed.

-EELINK protocol 2.2, Firmware OTA.

-USB connect with PC to configure device.

-Waterproof level IP65.

Voltage:12/ 24/ 36/ 48/ 60/ 72 VDC

Work Current: GPRS(500mA);WCDMA(700mA); LTE(800mA)

Standby Current: Power off(20uA);Sleep(3mA);Idel(22mA)

Satellite Accuracy: 5-15m

LBS Accuracy: >100m

GNSS Band: 1575MHz

GSM Band: B2/B3/B5/B8

WCDMA Band: B1/B2/B5/B8

LTE Band: FDD(B1/B2/B3/B4/B5/B7/B8/B28); TDD(B40)

Working Temperature& humidity: -20℃~75℃; 20%~90% RH

Hot/warm/cold Start: <3s, <26 s, <35 s

Battery Capacity: 160mAh

Dimensions (mm): 89(L)X 37(W) X 12(H)

Net Weight: 46g

Power cable: default

Relay for cut off engine (optional)

iButton for driver ID identify (optional)
