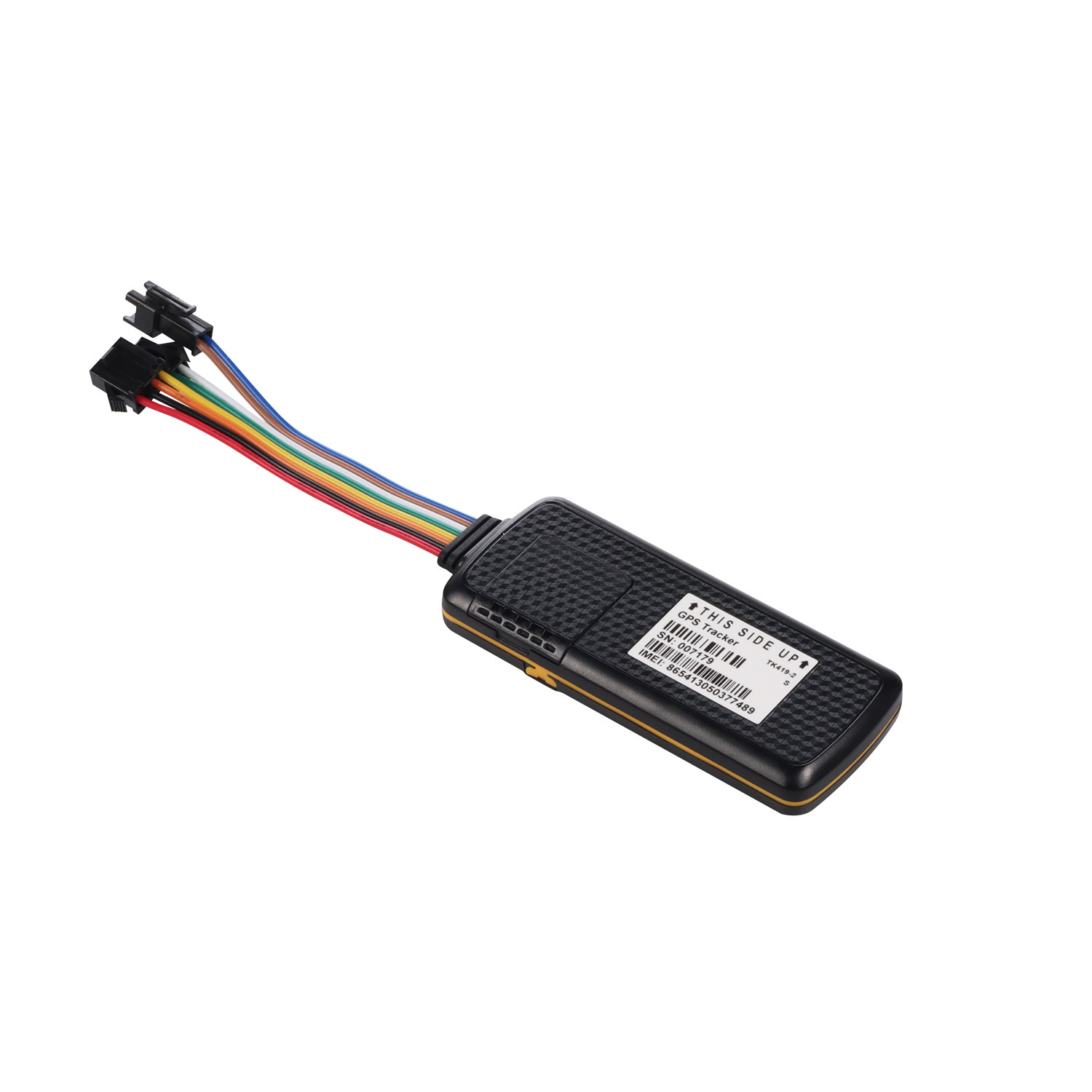

4G vehicle GPS Tracker cut off engine for fleet Truck cargo

Manufacturer:	EELINK
Model:	Tk419-2
Demension:	89mm x 37mm x 12mm
Net Weight:	50g
Network:	2G/4G
Module:	EG915U-LA

4G LTE FDD GPS tracker TK419-2 is an excellent real time tracking vehicle tracker. It uses GPS satellites location in combination with EG915U-LA module to report vehicle's location information. This module provides efficient and cost-effective high-speed mobile connectivity.

GPS tracker monitors the vehicle by GPS, LBS. It collects location data, then transmit its position to the GPS tracking system over 4G or 2G networks. The location information is determined by GPS, LBS. Real time location is displayed on Google map via PC, APP.

GPS Tracker helps customers to improve the management efficiency, reduce maintenance cost, restrict drivers' driving behavior, protect vehicles' security.

Inquiry Us + Sample Order

Description Features Specifications Accessories

GPS tracker allows users to track down the exact location of the device of a person or an object, which the tracker is attached. The tracker is placed on the object to triangulates the position of the object. It can display the location on the mobile phone with real time alerts on the GPS tracking system.

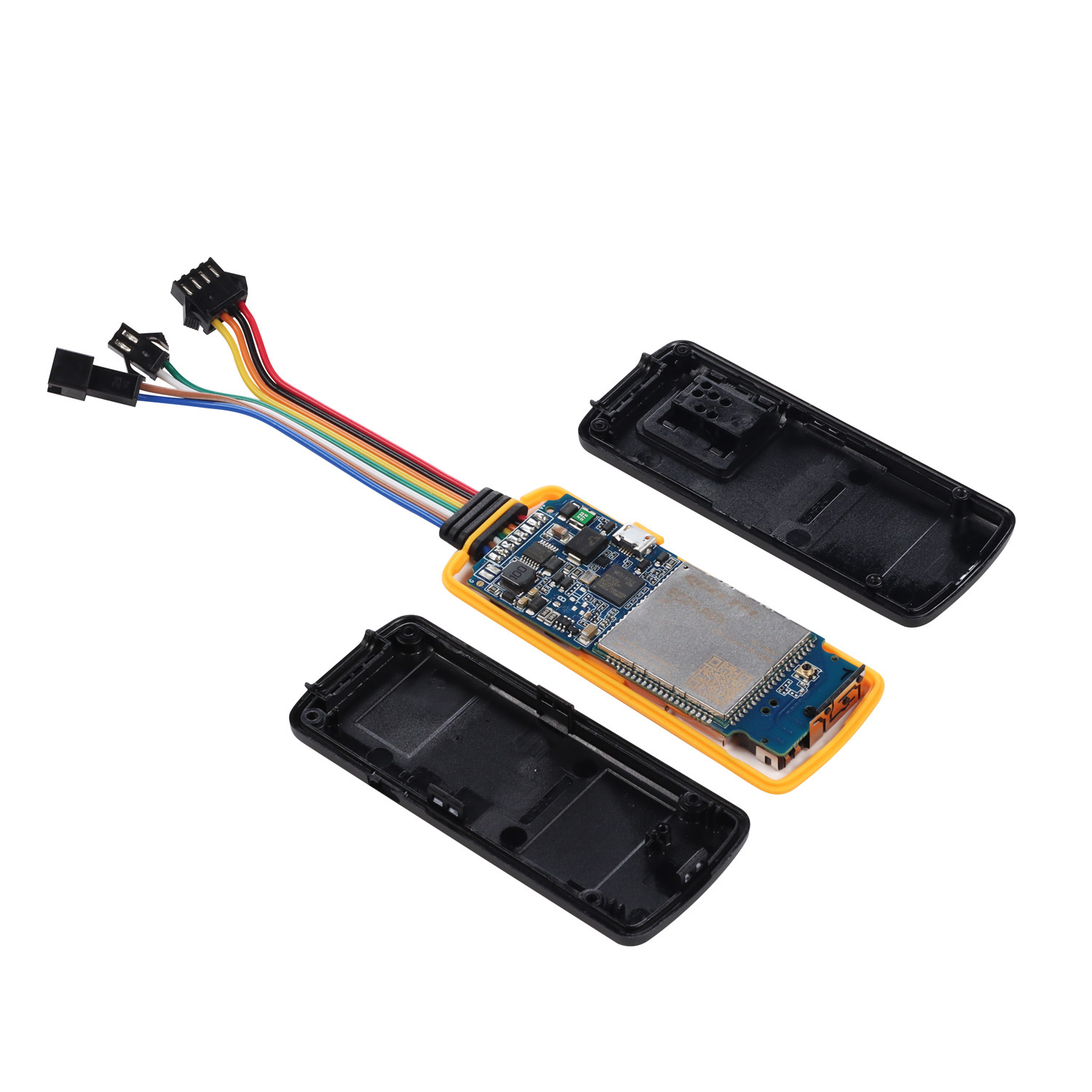

GPS Tracking deviceTK419-2s is made of EG915U-LA module for network communication. EG915U-LA module supports below bands for 2G and 4G.

2G:B2/B3/B5/B8

4G: FDD: B2/B3/B4/B5/B7/B8/B28/B66

Its advantage lies not only in the use of 4G network technology, but also in its multifunctional. It is best solution for fleet/truck/cargo tracking.

Terminator of vehicle theft thief

Theft, misuse and resource management is the common issues faced by the vehicle owners and Fleet operators.

Once installed the GPS tracking device, the theft thief would be feared. Because we can track the driving status and location information of the vehicle. Even if our car is stolen, we can quickly notify the police to arrest, the location of the thief is no longer a secret. Installing GPS tracking devices for your car is a good solution to solve the problem that your car be stolen. It is no doubt that Tk419-2 have better performance in vehicle position tracking.

4G LTE GPS Tracker TK419-2 is provisioned for TCP/IP, UDP and SMS data services for application command and or data transaction within the GSM, 4G LTE network. Network provisioning is done using SIM technology for reliability and cost saving.

It is designed with LED Light, Red and Blue. Two LED status helps to verify the correct installation and initial operation. The unique power management allows the two LEDs to be extinguished once installation is verified to be correct.

More 4G GPS tracker from Eelink

TIPS:

The customer can use our GPS tracking system (suitable for third-party platform)

EELINK develop own GPS Tracking system. A great many of GPS Trackers can be managed on the tracking system. Location information, alarms records can be checked on the platform. It is more convenient for fleet management by using GPS Tracking system.

GPS Tracking in real time

Locate, track the car with updates every 30 seconds by default. The uploading intervals can be configured according to the device moving or static status, distance, course.

Trip Reports

Make sure your drivers are safe out on the road. You can view and replay turn-by-turn mapping of each trip, with a detailed account of time and miles driven, driving score, safety alerts and more.

Emergency Crash Response

Device trigger crash alarm, SOS alert. It needs SOS button to trigger SOS alert.

Mileage Check

Easily designate your trips as a personal or business trip with the Mileage check feature.

Teen / Senior Driver Safety

keep teen driver, Senior driver safe with real-time monitoring, speed alerts, hard brake alerts, hard acceleration alerts, custom geofencing, trip reports, curfew alerts, and more.

Catalogue	GPS tracker
Model	TK419-2s
Voltage	9-36VDC
Work peak current	500mA (GPRS), 800mA (LTE)@12V
Standby Current	<10mA@12V
GPS positioning accuracy	5m-15m (Depending on GPS Signal)
GSM positioning accuracy	~200m (Depending on density of base stations)
GPS Frequency	1575MHz
Network	4G LTE FDD, 2G GSM GPRS
GSM Band	(B2/ B3/ B5/ B8) 850, 900, 1800 and 1900MHz
LTE Band	FDD(B2/B3/B4/B5/B7/B8/B28/B66)
Hot/warm/cold start time	<3s,<26s,<35s
SMS	Text-data
Transmit Protocol	Embedded TCP/IP, UDP/IP, PPP, HTTP/NTP/QMI etc.
GPRS	Class 12, TCP/IP
Flash Memory	4MB for application and data storage
LED Indicator	GPS-Blue; GSM-Red
Motion sensor	Embedded 3D motion sensor
Motion sensor	Detecting moving status for saving consumption.
Optional Accessories	Relay SOS Button External battery IBUTTON BLE. External temperature / Humidity probe
Standby time	about 1-2hours
Internal Battery capacity	160mAh, For power disconnection alarm, Low battery alarm.
Dimensions (mm)	89(L)X37(W)X12(H)
Operating temperature	-20ºC~70ºC
Operating humidity	20%~80%RH
Net Weight	50 g

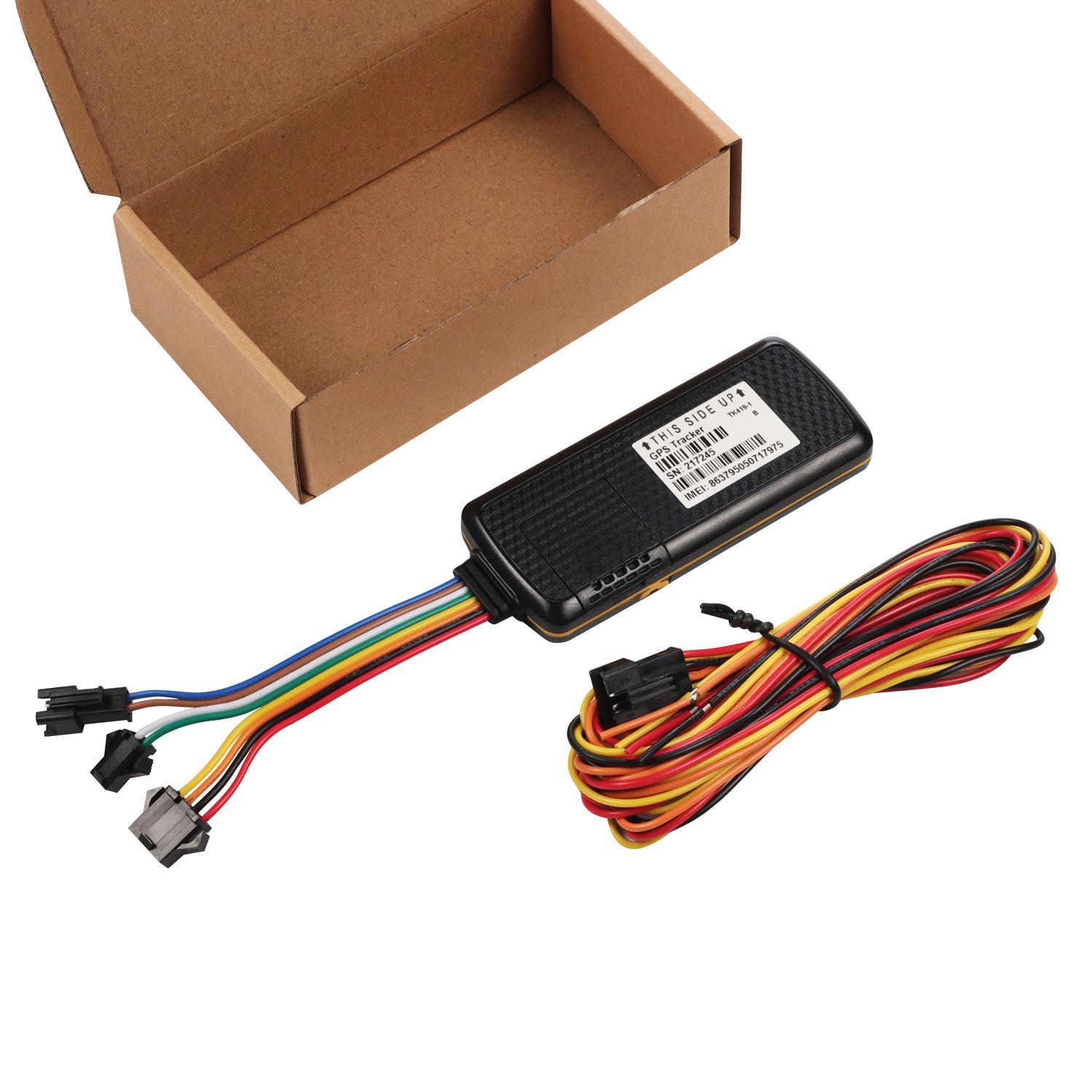

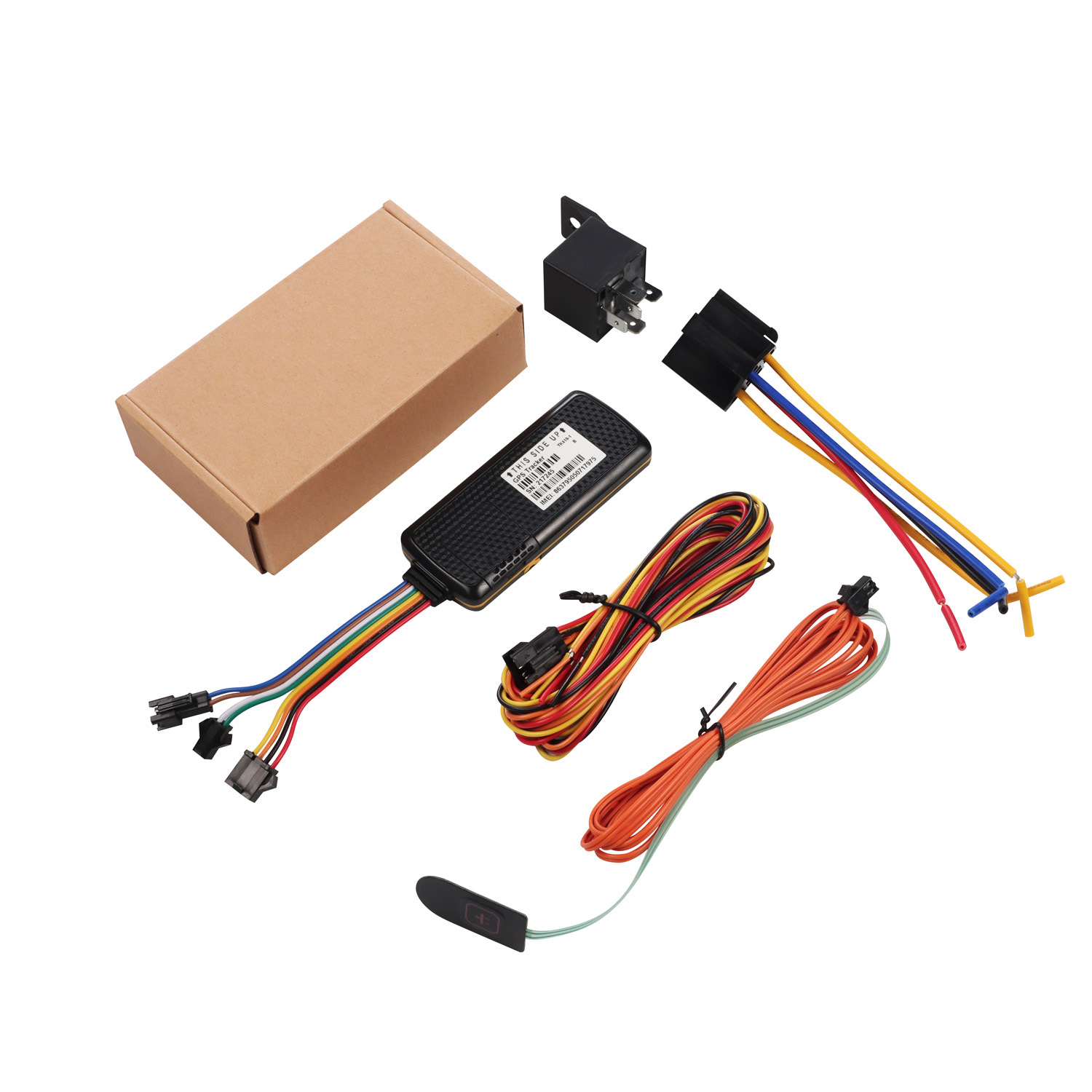

power cable,

Optional accessories,

- SOS cable,

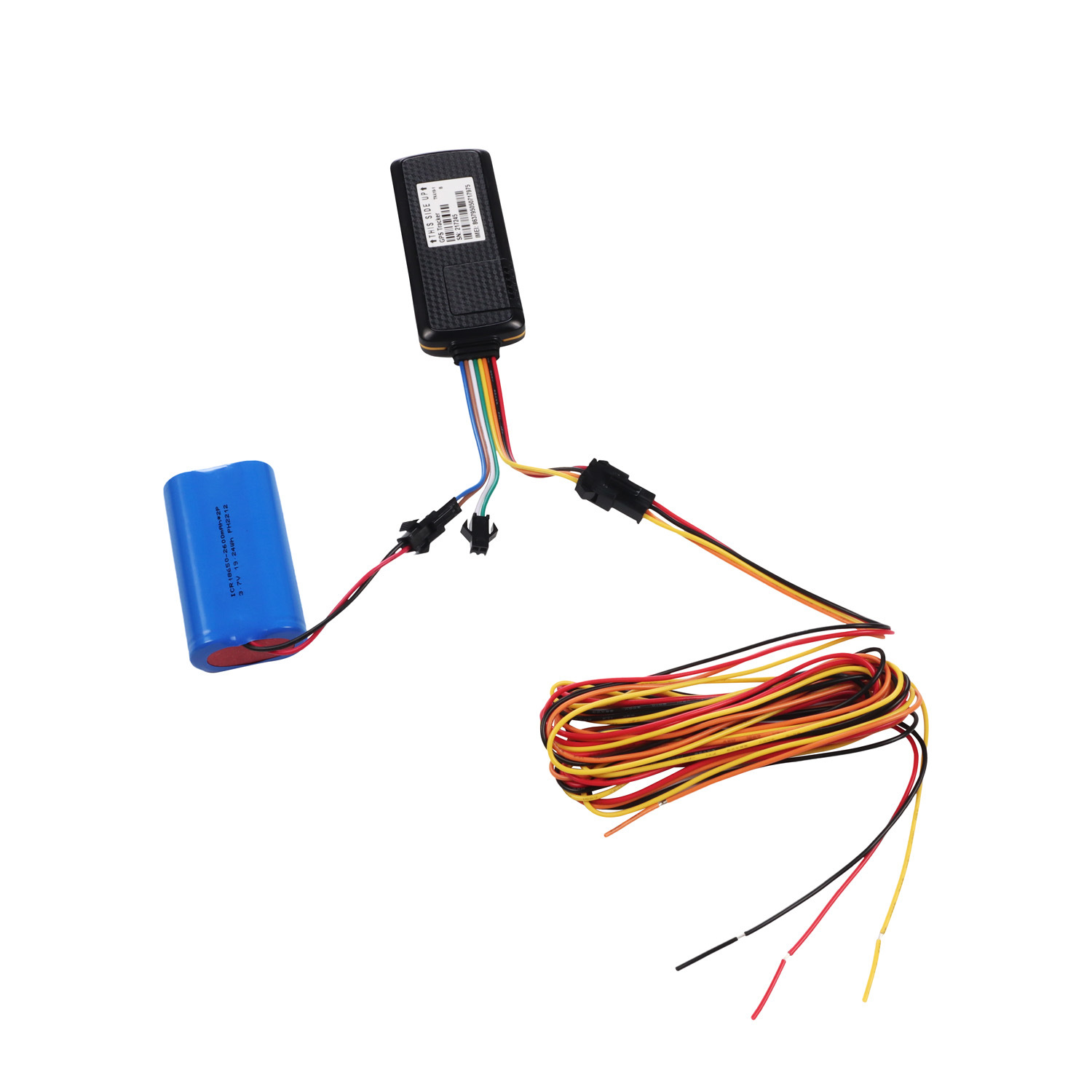

- External battery,

- External probe for temperature, humidity monitoring.

- Relay to stop / recover the engine.

- ibutton to identify driver's license.

- BLE to collects beacons in the surroundings.
