LTE CAT M1 Vehicle GPS Tracker for fleet management TK319-L

The description of 4G LTE CAT M1 Vehicle Tracker TK319-L

The TK319-L (Cat M1 or Cat NB1 can be switched by software setting in manufacturer before delivery)Tracker is vehicle tracking device that uses GPS (uBlox IC embedded AGPS algorithm) satellite location in combination with a complete, performance optimized, multi-mode and multiband LTE Cat M1/NB1 and EGPRS module of uBlox to report that location.

This module provides efficient and cost-effective high-speed mobile connectivity. The TK319-L is optimized for reliability, cost efficient and size.

4G LTE TK319-L vehicle tracker  uses GPS (uBlox IC embedded AGPS algorithm) satellite location in combination with a complete, performance optimized, multi-mode and multiband LTE Cat M1/NB1 and EGPRS module of uBlox to report the location. This module provides efficient and cost-effective high-speed mobile connectivity. The TK319-L is optimized version for reliability, cost efficient of Eelink tracker.

The TK319-L is a cost optimized version of Eelinktech standard tracker that is targeted at truck/cargo’s tracking or asset management market oriented IOT applications etc.

All antennas including the GPS patch and LTE antenna are internal to the device. Data reporting can be initiated by a server or by the tracker itself via LTE’s SMS, TCP/IP or UDP path ways or over a physical USB connection.

Basic info of 4G LTE CAT M1 Vehicle Tracker TK319-L

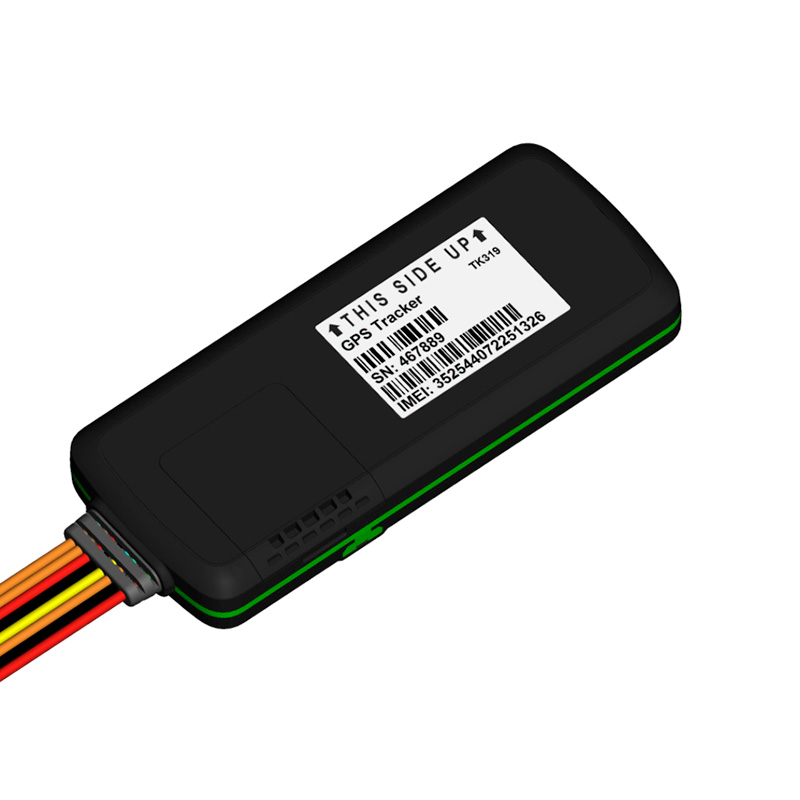

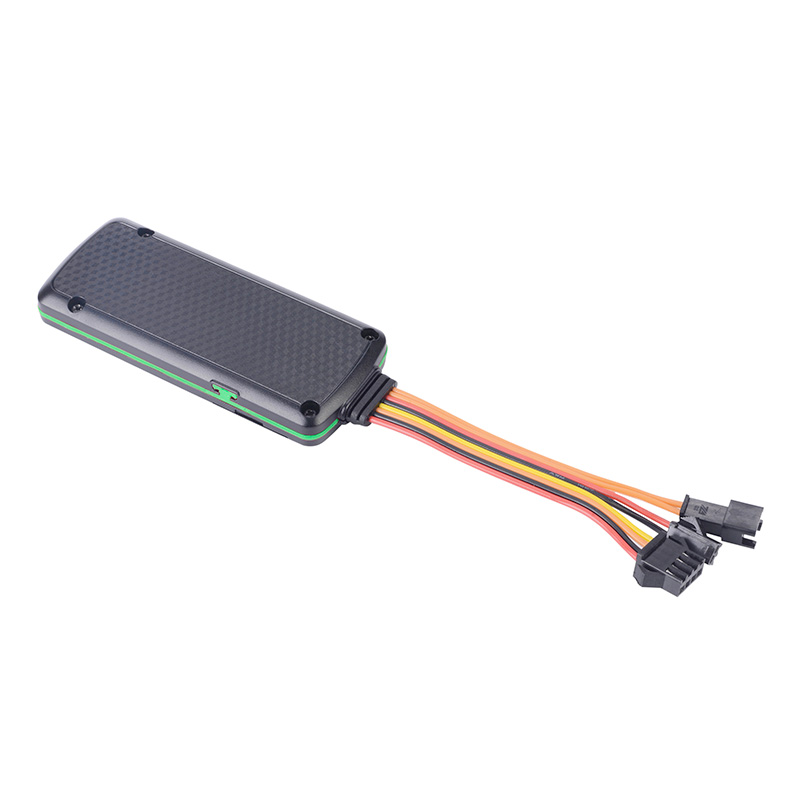

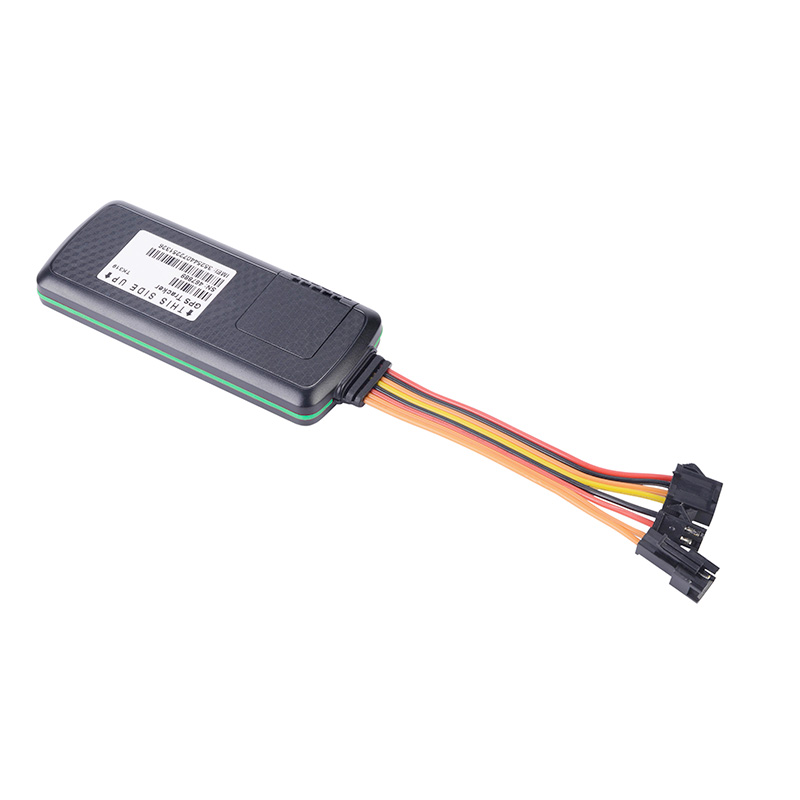

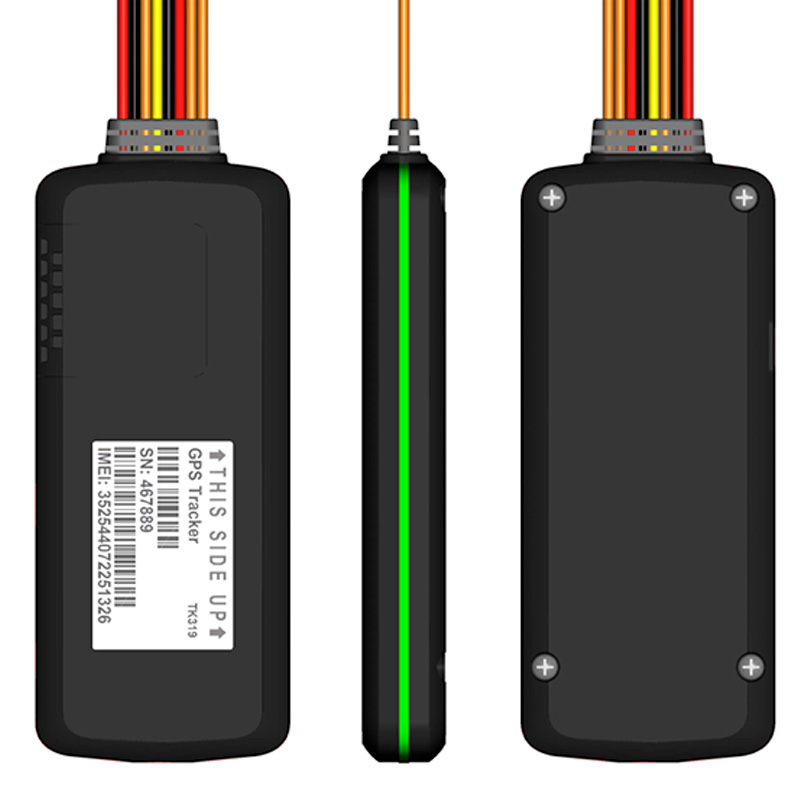

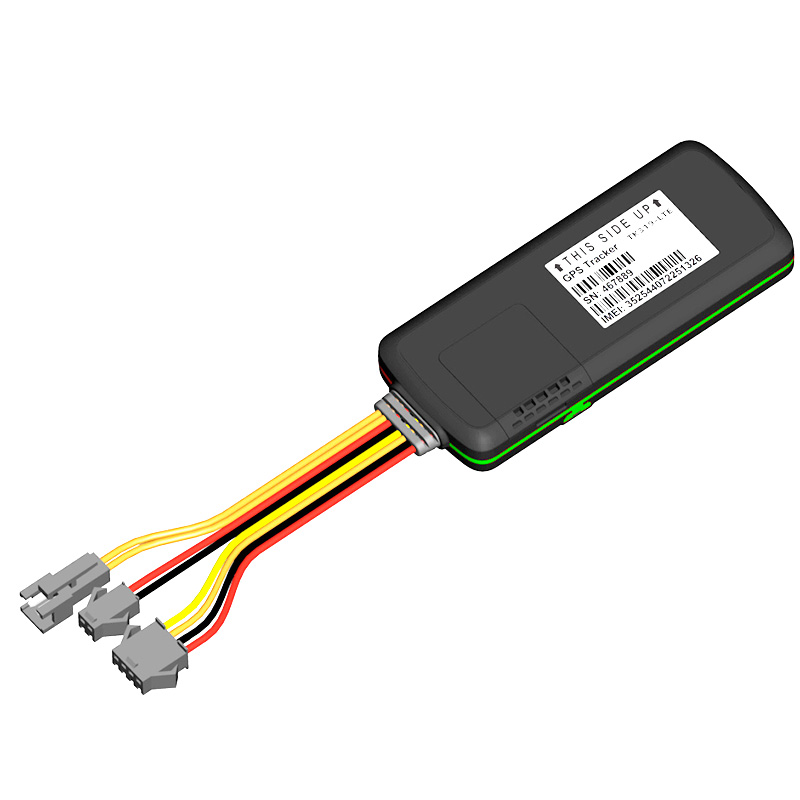

The TK319L is comprised of a simple two- piece of plastic enclosure which is waterproof IP65 for reliability, durability and low cost assembly.

Port extension function: It enables Sensor, extra battery power supply, SOS alrm, Key features include:

• Support temperature and humidity detection
• SOS alrm
• Extra power supply 18650 Li-ion battery x 2=4800mAh

The advantage of LTE CAT-M1, Cat NB1 unit. LTE Cat is a LPWA (low-power wide-area) air interface that allows to connect  IoT and machine-to-machine devices (M2M).It enables longer battery lifecycles and greater in‑building range, Key features include:

• Support of voice functionality via VoLTE
• Full mobility and in‑vehicle hand‑over
• Low power consumption
• Extended in‑building range

Features of LTE CAT M1 GPS Vehicle Tracker TK319-L

• 2G/4G covers globally universal frequency bands
• The Module has received PICRB, GCF, FCC, IC, Anatel, AT&T, CCC certifications
• GPS/LBS dual positioning, and support A-GPS
• Intelligent real-time tracking, and report the location
• Temperature sensor can be connected to detect temperature in real time(optional)
• ACC Detection, Remote Fuel Shutoff, Over speed Fuel Shutdown (New)
• GPIO extension, can be extended to Serial Port
• Adopting the new Eelinktech Protocol 2.0 (TCP), the firmware can be upgraded remotely (OTA)
• Possessing a certain waterproof IP65 and dustproof performance
• With PC web page, mobile APP query, SMS inquiry and remote settings

ADVANTAGES:

TIPS

NB-Iot GPS Tracker LTE CAT M1/NB1 already Full-covered in US & AU. Ca will also ready soon, and Brazil, Mexica & Eu work in some places. TK319-L we provide a very competitive price for the new market, and send out thousands devices with good reputation.
