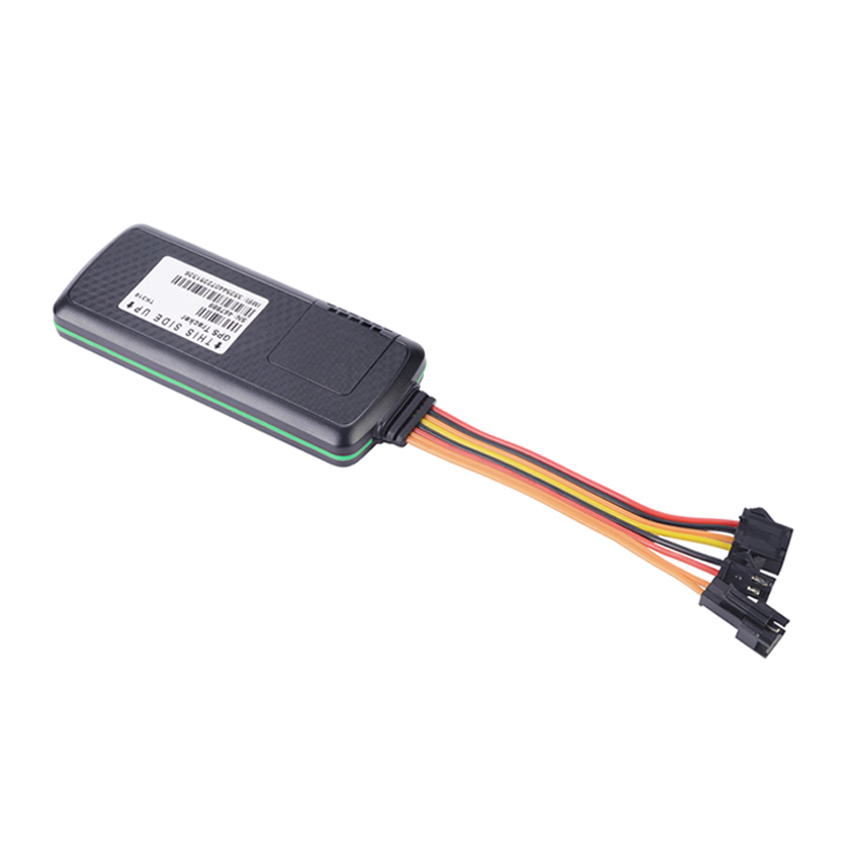

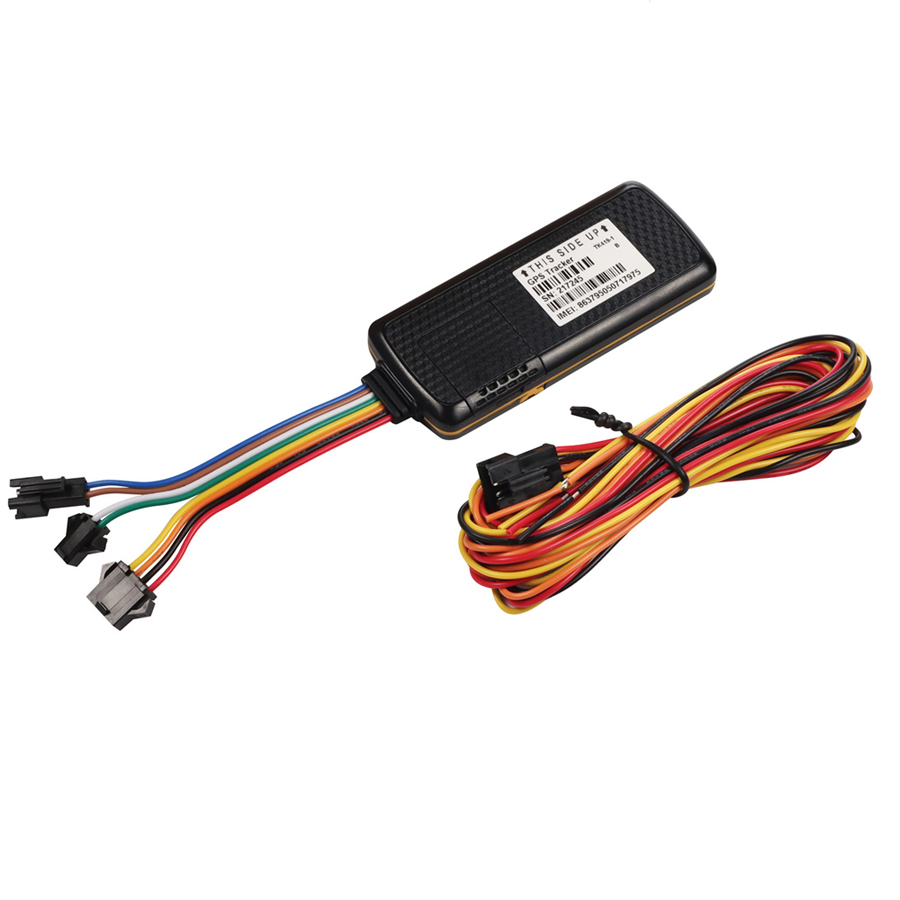

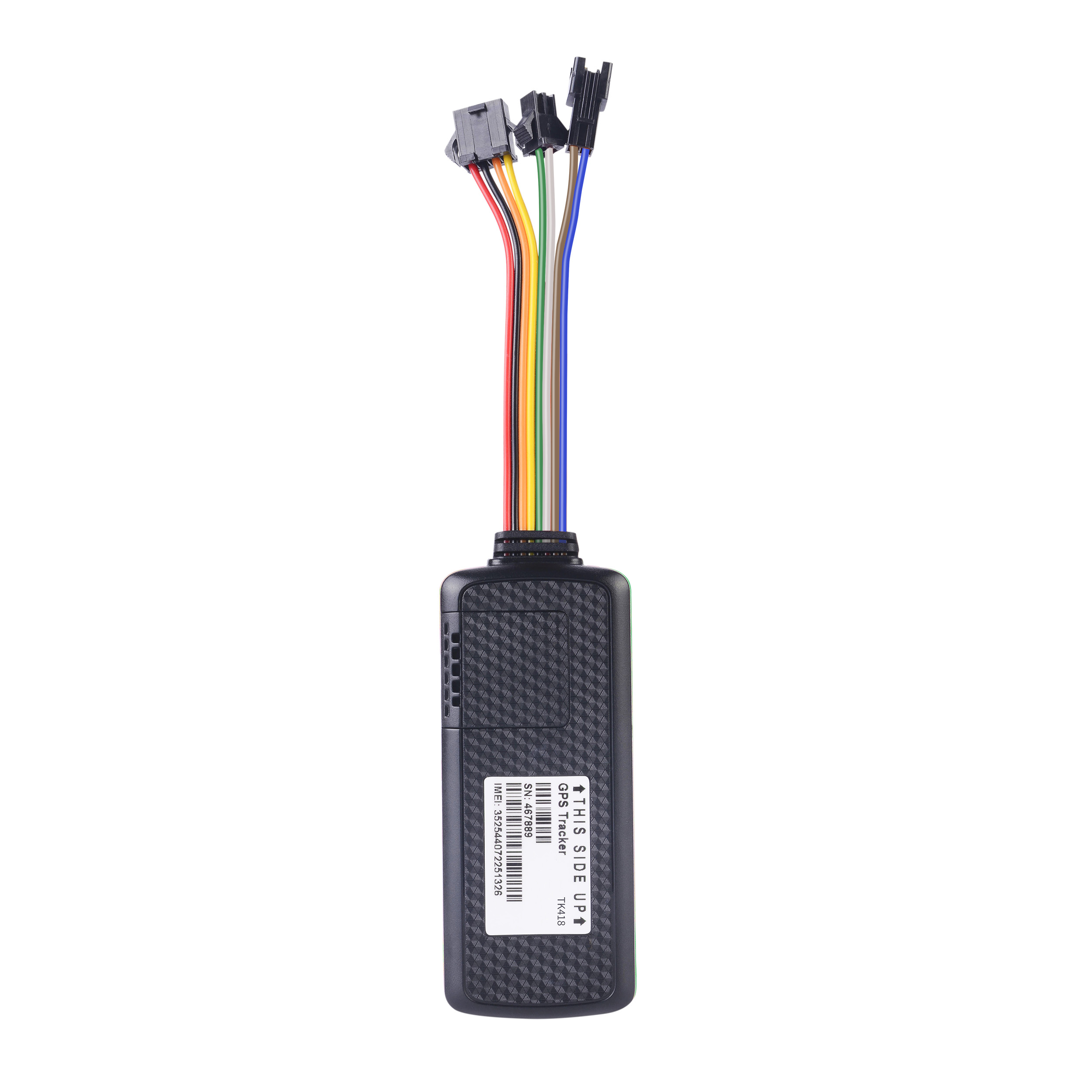

IoT NB1/LTE CAT M1 vehicle tracking device support cut off engine TK418

TK418 is a high performance vehicle tracking devices，which supports LTE CAT M1 or IoT  network,it has a low power consumption and help a lot in fleet mangement.

TK418 features:

■ Supports LTE CAT M1 and GSM
■ Super Wide Input Voltage：9-48V DC.
■ GPS precise positioning, Support A-GPS, uploaded by LTE/GPRS regularly, real-time tracking and history track playback.
■ ACC status detection
■ Support SOS, Temperature, External battery, GPIO(Hardware customization, Choose one of the four)
■ Serial port, also can be GPIO port(Firmware Customization).
■ Built-in battery, power disconnect alarm & low battery alarm.
■ Built-in G-sensor, vibration, collision and falling alarm.
■ GEO-fence alarm, speed & shift alarm.
■ Relay to cut engine, auto cut engine when over speed and recover when normal speed.
■ EELINK protocol 2.2, Firmware OTA

■ Waterproof level IP65

■ Supports GSM/LTE CAT M1.
■ Super Wide Input Voltage：9-48V DC.
■ GPS precise positioning, Support A-GPS, uploaded by LTE/GPRS regularly, real-time tracking and history track playback.
■ ACC status detection
■ Support SOS, Temperature, External battery, GPIO(Hardware customization, Choose one of the four)
■ Serial port, also can be GPIO port(Firmware Customization).
■ Built-in battery, power disconnect alarm & low battery alarm.
■ Built-in G-sensor, vibration, collision and falling alarm.
■ GEO-fence alarm, speed & shift alarm.
■ Relay to cut engine, auto cut engine when over speed and recover when normal speed.
■ EELINK protocol 2.0, Firmware OTA

■ Waterproof level IP65

Support Bands:
GPS Band: 1575MHz
GSM Band: 850/900/1800/1900MHz
LTE Band:Global bands(1,2,3,4,5,8,12,13,17,18,19,20,25,26,28 and 39)

Basic Specifications

Voltage: 12/ 24/ 36/ 48 VDC
Work Current: GPRS(245-265mA); LTE(260mA);Standby Current IDLE(2mA@12V)
GPS Accuracy: 5-15m
LBS Accuracy: >100m
Temperature-Sensor Accuracy: ± 0.5℃
Temperature-Sensor Arrange: -30℃~80℃
Working Temperature Arrange: -20℃~75℃
Hot/warm/cold Start: <3s，<15s，<60s
Battery Capacity： 160mAh
Dimensions (mm)： 89(L)X 37(W) X 12(H)
Work Humidity： 20%～80%RH

Net Weight： 50g

NETWORK
IoT NB1/CAT M1 network

SUPPORT COUNTRIES:

USA,Australia,Canada etc

Optional Accessories

Power Cable(Default)
Relay(Optional)
Temperature Sensor(Optional)
External Battery(Optional)
SOS(Optional)
OBD exteral wire for OBD interface connection
